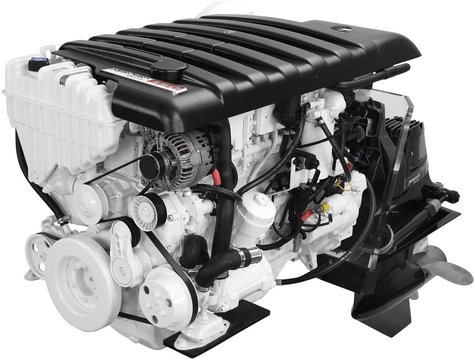

Leading the industry in power-to-weight ratio. Giving you a full-throttle on the water.
Designed for sterndrive and inboard applications.
Specifications - 4.2L
Power mhp / kW
350 / 257
Bore and stroke
3.70 x 3.94" / 94 x 100 mm
Maximum RPM (WOT)
3800
Engine type
Inline 6
Displacement (L)
4.2
Weight (engine only)
1014 lbs / 460 kg
Weight (incl. transmission)
1111 lbs / 504 kg
Weight - Bravo Three
1272 lbs / 577 kg
Dimensions (L x W x H)
42 x 30 x 31" / 1077 x 773 x 790 mm
Cooling system
Closed cooling
Fuel consumption
21.5 gal/hr / 81.46 l/hr @ 3800 rpm
Compatible drives
Bravo Three
Emission
EPA Tier 2 IMO RCD BSO/SAV certified
Power mhp / kW
320 / 235
Bore and stroke
3.70 x 3.94" / 94 x 100 mm
Maximum RPM (WOT)
3800
Engine type
Inline 6
Displacement (L)
4.2
Weight (engine only)
1014 lbs / 460 kg
Weight (incl. transmission)
1111 lbs / 504 kg
Weight - Bravo One
1246 lbs / 565 kg
Weight - Bravo Two
1261 lbs / 572 kg
Weight - Bravo Three
1272 lbs / 577 kg
Dimensions (L x W x H)
42 x 30 x 31" / 1077 x 773 x 790 mm
Cooling system
Closed cooling
Fuel consumption
19.0 gal/hr / 71.96 l/hr @ 3800 rpm
Compatible drives
Bravo One
Bravo Three
Bravo Two
Emission
EPA Tier 2 IMO RCD BSO/SAV certified

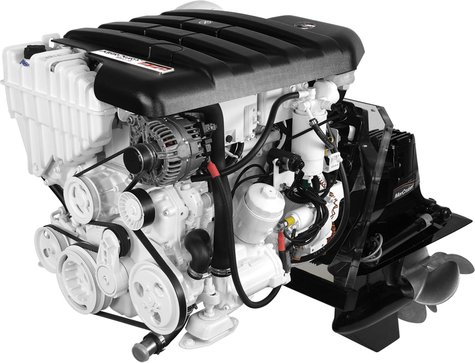

2.8L - 220hp
Engine Details.
Smooth, effortless cruising. The reliability of a Mercury engine, the power of a diesel. Provides added power for mid-range vessels in either twin or single configurations.
Specifications - 6EY22AW
Power mhp / kW
220 / 160
Bore and stroke
3.70 x 3.94" / 94 x 100 mm
Maximum RPM (WOT)
3800
Engine type
Inline 4
Displacement (L)
2.8
Weight (engine only)
794 lbs / 360 kg
Power mhp / kW
220 / 160
Bore and stroke
3.70 x 3.94" / 94 x 100 mm
Maximum RPM (WOT)
3800
Engine type
Inline 4
Displacement (L)
2.8
Weight (engine only)
794 lbs / 360 kg
Power mhp / kW
220 / 160
Bore and stroke
3.70 x 3.94" / 94 x 100 mm
Maximum RPM (WOT)
3800
Engine type
Inline 4
Displacement (L)
2.8
Weight (engine only)
794 lbs / 360 kg
Weight (incl. transmission)
873 lbs / 396 kg
Weight - Bravo One
1025 lbs / 465 kg
Weight - Bravo Two
1041 lbs / 472 kg
Weight - Bravo Three
1052 lbs / 477 kg
Dimensions (L x W x H)
34 x 30 x 31" / 861 x 772 x 793 mm
Cooling system
Closed cooling
Fuel consumption
13.4 gal/hr / 50.6 l/ hr @ 3800 rpm
Compatible drives
Bravo One
Bravo Three
Bravo Two
Emission
EPA Tier 2
Compatible with SmartCraft digital technology
Yes

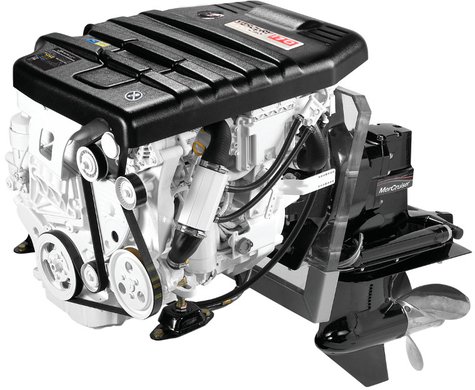

2.0L (115hp-170hp)
Engine Details.
A proven performer in the diesel marine industry. Diesel fuel efficiency without the noise and roughness.
Specifications - 2.0L
Power mhp / kW
170 / 124
Bore and stroke
3.27 x 3.62" / 83 x 92 mm
Maximum RPM (WOT)
4000
Engine type
Inline 4
Displacement (L)
2.0
Weight (engine only)
551 lbs / 250 kg
Power mhp / kW
170 / 124
Bore and stroke
3.27 x 3.62" / 83 x 92 mm
Maximum RPM (WOT)
4000
Engine type
Inline 4
Displacement (L)
2.0
Weight (engine only)
551 lbs / 250 kg

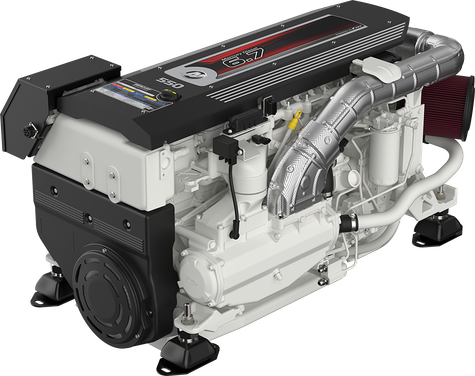

6.7L (480-550hp)
Engine Details.
Up to 550mph for sport yachts. Delivers exceptional performance, acceleration and top speed.
Specifications - 6.7L
Power mhp / kW
550 / 405
Cylinder Configuration
Inline 6
Dry weight *Lightest model available
1,642 lbs / 745 kg
Power mhp / kW
550 / 405
Cylinder Configuration
Inline 6
Dry weight *Lightest model available
1,642 lbs / 745 kg
Direction of Rotation
Counter Clockwise
Valves per Cylinder
4
Emission Certification
EPA Tier 3
EU RCD 2
IMO Tier 2
Bore and stroke
4.094 x 5.197" / 104 x 132 mm
Air Handling
Turbo Charged and After Cooled
Rated rpm
3200
Max Torque in N-m (ft-lb) at rpm
1,580 (1,165) @ 1,900
Engine Cooling
Closed Cooled
Turbo Cooling
Closed Cooled
Engine Stop
ECU Controlled
Flywheel Housing
SAE 3
Bobtail Length (mm)
1,089
Bobtail Width (mm)
864
Bobtail Height (mm)
848
Inboard: ZF 280IV
1.25:1, 1.56:1, 1.77:1, 2.06:1, 2.28:1, 2.56:1 and 3.09:1
1.12:1, 1.48:1, 1.77:1, 2.00:1, 2.23:1, and 2.48:1
Displacement (L)
6.7
Compatible with SmartCraft digital technology
Yes

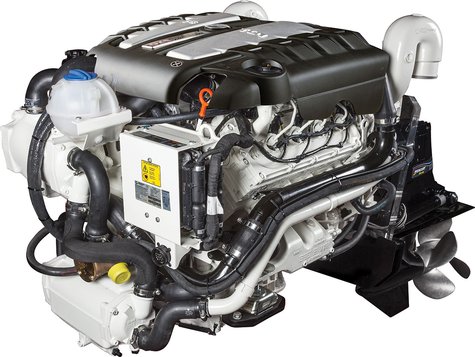

TDI 4.2L (335hp-370hp)
Engine Details.
Leading the industry in power-to-weight ratio. Giving you a full-throttle day on the water. This Mercury Diesel engine sets a new benchmark for low noise and vibration.
Specifications - TDI 4.2L
Power mhp / kW
370 / 272
Bore and stroke
3.27 x 3.74" / 83 x 95 mm
Maximum RPM (WOT)
4200
Engine type
V-8
Displacement (L)
4.2
Weight (engine only)
836 lbs / 379 kg
Weight (incl. transmission)
933 lbs / 423 kg
Power mhp / kW
370 / 272
Bore and stroke
3.27 x 3.74" / 83 x 95 mm
Maximum RPM (WOT)
4200
Engine type
V-8
Displacement (L)
4.2
Weight (engine only)
836 lbs / 379 kg
Weight (incl. transmission)
933 lbs / 423 kg
Weight - Bravo One
1067 lbs / 484 kg
Weight - Bravo Two
1082 lbs / 491 kg
Weight - Bravo Three
1093 lbs / 496 kg
Dimensions (L x W x H)
47 x 33 x 33" / 1206 x 835 x 836 mm
Cooling system
Closed cooling
Fuel consumption
20.5 gph / 77.6 lph @ 4200
Compatible drives
Bravo One
Bravo Three
Bravo Two
Emission
BSO 2 RCD 2 IMO 2 EPA Tier 3

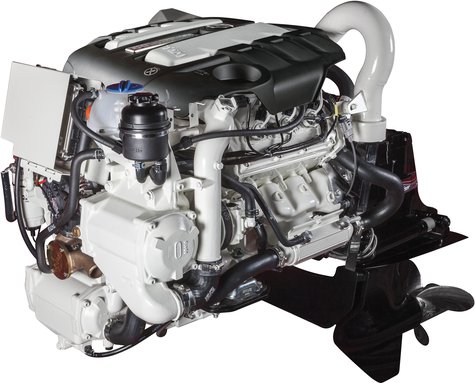

TDI 3.0L (150hp- 260hp)
Engine Details.
Excellant torque and reduced plane time. Drives hard, handles well.
